SunwayVision Tactical AR Headset is a professional multispectral wearable system designed for next-generation situational awareness and integration within IVAS-class environments. Fully compatible with Wilcox L4 G24 mounting systems, the headset provides a rugged, field-ready solution for rescue and engineering operations. The unit combines a set of high-performance multispectral cameras with advanced waveguide-based reflective optics and low-emission OLED micro-displays, ensuring clear augmented-reality visualization with minimal external light signature.
Built as an open, computer-connected platform, the goggles can interface directly with any portable computer equipped with Thunderbolt or USB 3.2 DP connectivity, allowing seamless integration with tactical networks, AI-driven analysis, or command systems. SunwayVision’s optical design delivers high brightness, wide field of view, and low latency for real-time visual augmentation in demanding environments.
Designed for adaptability and mission flexibility, SunwayVision serves as a ready-to-deploy AR vision component for advanced security systems, medical rescue coordination, and precision engineering support. With its modular structure and software-defined architecture, it provides an ideal foundation for R&D and field deployment within integrated visual augmentation systems (IVAS) and beyond.

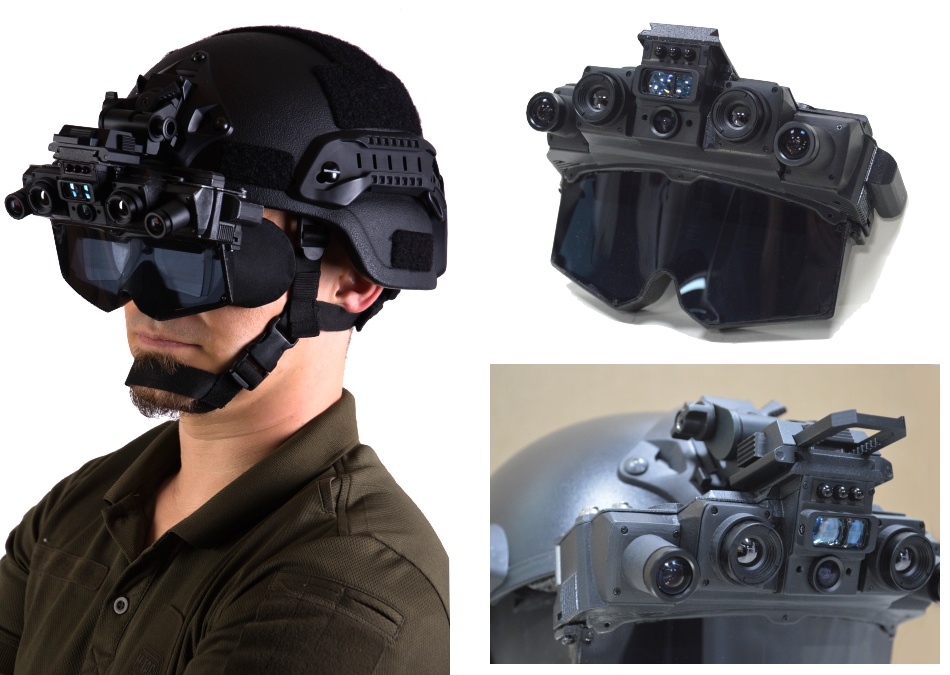

On pictures: AR SunwayVision Headset version 1.0
| Model name: | AR SunwayVision Headset version 2.0 (IVAS-Ready) (OEM possible) |
|---|---|

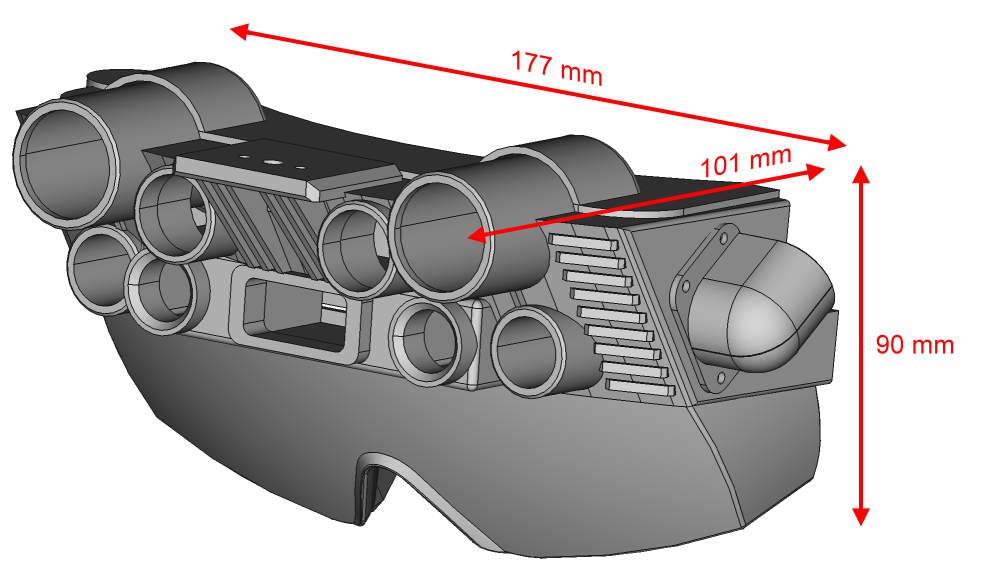

| Dimensions | 177 x 101 x 90 mm |
| Housing material | EN AW-6082-T6 (AlSi1MgMn) |
| Weight | 470g (without computer unit) |
| Display | 2x reflective waveguide (transparent) with OLED panels 1920×1200 per eye, 55°FOV, 900 nits, 60Hz |
| Thermal cameras | 2x shutterles 640×512, spectral range: 8～14μm, NETD ≤50mK, 60 fps. |
| NIR cameras | 2x CMOS 1/1.8″, NIR 940nm, pixel 4.0×4.0µm, 1920×1080, HDR~100dB, 60 fps. |
| HDR cameras | 2x CMOS 1/2.9″, HDR~120dB (3-frame staggered shutter), pixel 2.9×2.9µm, 1920×1080, 60 fps. |
| IR emitters | 2x 940nm, 5W |
| Rangefinder | distance 2000m, 2Hz |
| GPS | GNSS, multi-constellation (GPS/BeiDou/GLONASS/QZSS), accuracy< 2.5m, update rate 10Hz |
| Sensors | gyroscope, accelerometer, magnetometer (~1–3°, update rate 100Hz) |
| Ports | 1x Thunderbolt in-out |
| Mounting | Wilcox L4 G24 |
| Operating Temperature Range | -40℃～+70℃ |
| Protection | CE, IP67 |
| Accesories | Thunderbolt cable with waterproof connectors 1.2m Additional protective shield Wilcox L4 G24 adapter Transport suitcase |
| Optional | Computer Unit Radio Unit: RDS USRP B205mini (only for training and R&D purpose) |
| Minimal order | 20 pcs. |
